GOMAN XN22 Mini Excavator (2.03T)
Equipment Description

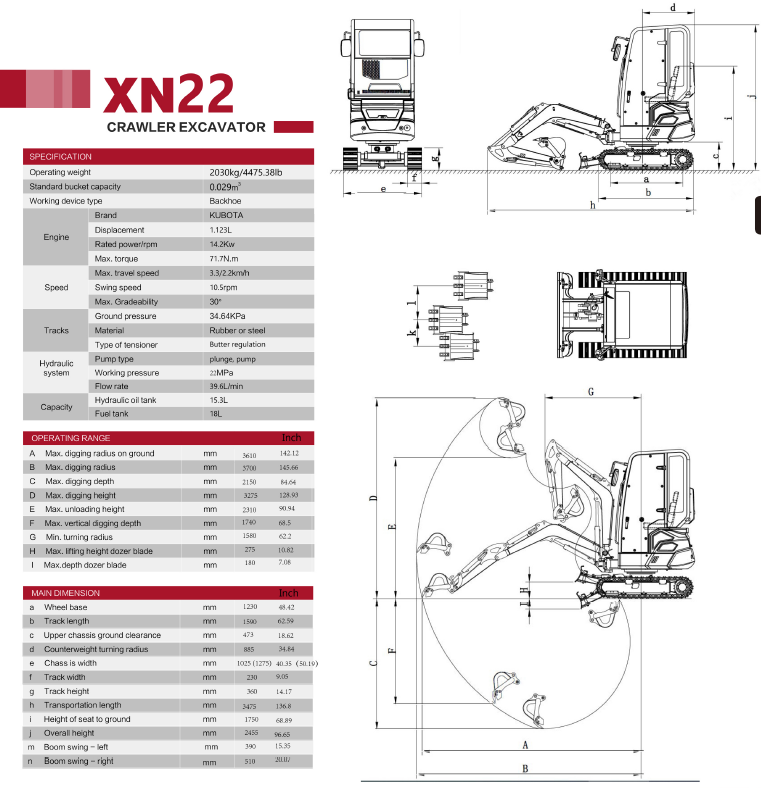

For sale: GOMAN XN22 crawler excavator — compact, reliable, and great for tight job sites. Ideal for trenching, landscaping, drainage, and general property work. Key Specs / Highlights (from the spec sheet) Operating weight: 2030 kg (4475 lbs) Standard bucket capacity: 0.029 m³ Engine: KUBOTA, displacement 1.123 L, rated power 14.2 kW, max torque 71.7 N·m Travel speed (Hi/Lo): 3.3 / 2.2 km/h (as listed) Swing speed: 10.5 rpm | Gradeability: 30° Ground pressure: 34.64 kPa Hydraulics: plunger pump, working pressure 22 MPa, flow rate 39.8 L/min Tanks: fuel 18 L, hydraulic oil tank 15.3 L Tracks: rubber or steel (per configuration Operating Range Max digging depth: 2500 mm Max digging radius: 3900 mm Max digging height: 3250 mm | Max unloading height: 2140 mm Min turning radius: 1580 mm Dozer blade: lift 175 mm, digging depth 250 mm Main Dimensions (highlights) Transport length: 3495 mm | Overall height: 2355 mm Chassis width: 1055 mm | Track width: 230 mm Condition: New Year: 2025
